Membrane Systems
Ultra-pure water. Precisely engineered at the molecular level.
The Challenge
Why can't municipal water meet pharmaceutical, data centre, and food-grade process requirements?
Pharmaceutical manufacturers require USP-grade purified water (PW) and water for injection (WFI). Data centers need ultra-low conductivity cooling water to prevent corrosion. Food processors need water free of pathogens and chemical residues. Standard municipal or groundwater supply — with TDS of 500–3,000 mg/L — cannot meet these demands without advanced membrane treatment.
Conductivity achievable with Navbharat Water's double-pass RO + EDI systems for pharma PW
How It Works
Four membrane technologies. One precision outcome.
Navbharat Water deploys RO, UF, NF, and MF membranes selectively — often in combination — to achieve the exact water quality your process requires. No over-engineering. No under-specification.
Reverse Osmosis
High-pressure (15–80 bar) rejection of dissolved salts, organics, and 99%+ of bacteria. Used for desalination, DM water production, and ZLD brine concentration. Recovery: 65–85%. TDS rejection: >98%.
Ultrafiltration
Operates at low pressure (1–4 bar). Rejects bacteria, viruses, colloidal particles, and macromolecules. Pore size 0.01–0.1 micron. Used as RO pre-treatment and for MBR STP systems. Recovery: 90–95%.
Nanofiltration & Microfiltration
NF softens water and removes divalent ions and colour. MF pre-filters turbid feeds. Used in food & beverage, textiles, and pharmaceutical applications where full desalination is not required.
Interactive Guide
Membrane Technology Selection Guide
Click any membrane zone on the spectrum to see details.
Technical Specifications
Built for precision.
| Parameter | Value / Range |
|---|---|
| RO capacity range | 1 KLD – 5 MLD |
| RO TDS rejection | > 98% |
| RO permeate conductivity | 10 – 500µS/cm |
| EDI polished water conductivity | < 0.1µS/cm |
| UF flux rate | 20 – 80LMH |
| Operating pressure (RO) | 8 – 80bar |
| Membrane material | PA TFC (RO), PVDF (UF/MF) |
| Clean-In-Place (CIP) | Automated, pH 2–12 tolerance |
RO systems achieve >98% TDS rejection with permeate conductivity of 10–500 µS/cm depending on feed quality. Adding an EDI (Electrodeionisation) polishing stage brings conductivity below 0.1 µS/cm — the specification for USP purified water (PW) in pharmaceutical manufacturing. UF pre-treatment at 20–80 LMH flux rate protects RO membranes from particulate fouling, extending membrane life to 3–5 years.
Case Study
Proven in the field.

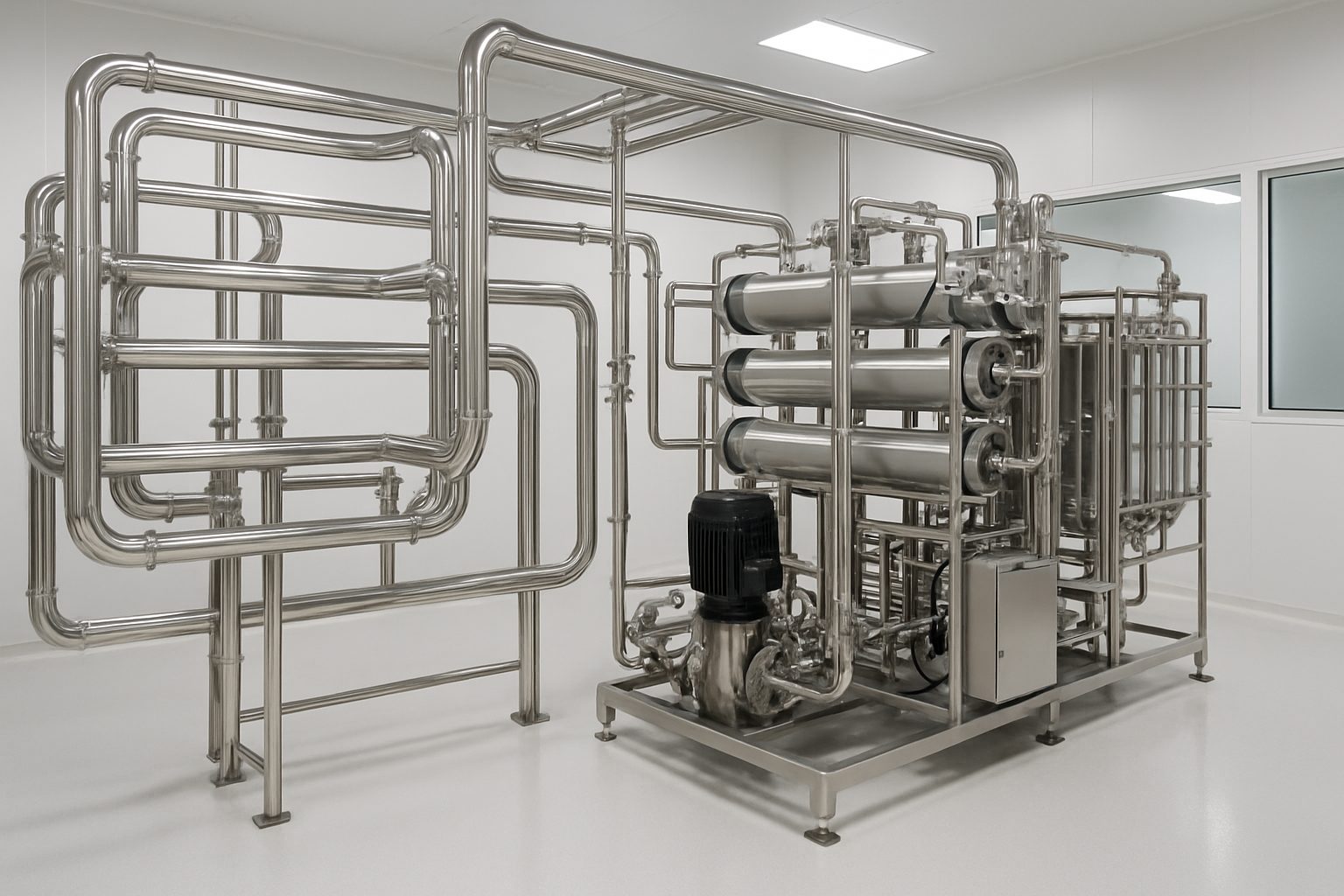

Pharmaceutical PW System — 50 KLD, Hyderabad, Telangana
Double-pass RO + EDI system delivering USP purified water at 0.06 µS/cm conductivity. System validated to USFDA 21 CFR Part 11 requirements. Three years of operation with zero OOS (out-of-specification) incidents. TOC consistently <100 ppb.
View all projectsCompliance Context
Which USP, USFDA, and FSSAI standards apply to your industrial membrane system?
Each application has distinct water quality standards. Navbharat Water's membrane systems are designed and validated against the applicable standard for your industry. Pharmaceutical PW systems undergo full DQ/IQ/OQ/PQ qualification with documentation packages. Data centre systems meet ASHRAE Guideline 12 and BSRIA BG 50 water treatment specifications.
USP 40 <1231> — Water for Pharmaceutical Purposes (Purified Water, WFI)
USFDA 21 CFR Part 211 — Current Good Manufacturing Practice
ASHRAE Guideline 12-2000 — Cooling Tower Water Treatment
FSSAI Regulations, 2011 — Process water quality for food manufacturing
BIS IS 10500 — Drinking water specification (for potable water systems)
